EG8143A5 Fiber Modem ONT CATV 4GE ONT Modem With Wifi 2.4G 5.8G

Ask Lasest Price
Brand Name :	HUAWEI
Model Number :	EG8143A5
Certification :	CE ROHS Anatel
Price :	Negociatable
Payment Terms :	T/T,Western Union
Supply Ability :	10000pcs/Week
Delivery Time :	7-15days

Add to Cart

Product Details
Company Profile

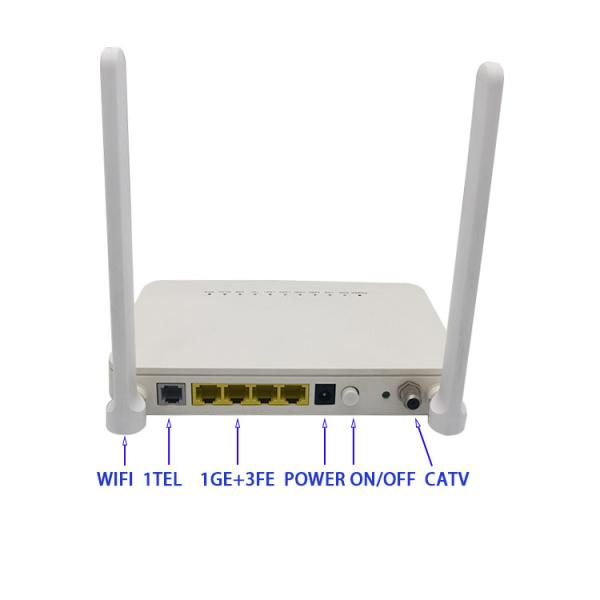

EG8143A5 Fiber Modem ONT CATV 4GE ONT Modem With Wifi 2.4G 5.8G

Original GPON ONU EG8143A5 Fiber modem ONT CATV + 4GE + 2.4G/5.8G

EchoLife EG8143A5

The EG8143A5 is a routing-type Optical Network Terminal (ONT) — an integral part of all-optical access solution — that uses Gigabit-capable Passive Optical Network (GPON) technology to implement ultra-broadband access for users. With high forwarding performance ensuring a consistent user experience for voice, data, and High Definition (HD) video services, and future-oriented service support capabilities, EG8143A5 helps enterprises construct the all-optical access solutions deployed on next generation campuses.

Specifications
Dimensions (H x W x D)	34 x 175 x 115 mm
Weight (Without power adapter)	Approximately 235 g
Operating Temperature	0–40°C
Operating Humidity	5%–95% RH (non-condensing)
Power Adapter Input	100–240 V AC, 50/60 Hz
UNI	1 x GE, 3 x FE, 1 x POTS, 1 x Wi-Fi (2.4G), and 1 x CATV
NNI	1 x GPON
Maximum Power Consumption*	8.2 W
Maximum PoE Output Power	NA
Surge Protection	GE port: common mode 4 kV; differential mode 0.5 kV AC power supply: common mode 6 kV; differential mode 6 kV
Installation Mode	Desktop
Compliance Certification	CE
GPON Port	Connector: SC/APC Class B+ Receiver sensitivity: –27 dBm Overload optical power: –8 dBm Type B single-homing Type B dual-homing (supported in Layer 2 forwarding)
Ethernet Electrical Port	Ethernet port-based VLAN tags and tag removal 1:1 VLAN, N:1 VLAN, or VLAN transmission QinQ VLAN Limit on the number of learned MAC addresses MAC address learning
POTS Port	Maximum REN: 4 G.711A/μ, G.729a/b, and G.722 encoding/decoding T.30/T.38/G.711 fax mode DTMF Emergency calls (complies with the SIP protocol)
WLAN	IEEE 802.11 b/g/n (2.4G) 2 x 2 MIMO Antenna gain: 2 dBi WMM Multiple SSIDs WPS Air interface rate: 300 Mbit/s

The default sales product is new one EG8143A5 Without remote control CATV function, with power supply, without box, If you need other models, please contact the seller manager.
