HG8245Q2 GPON ONU - terminal for GPON network

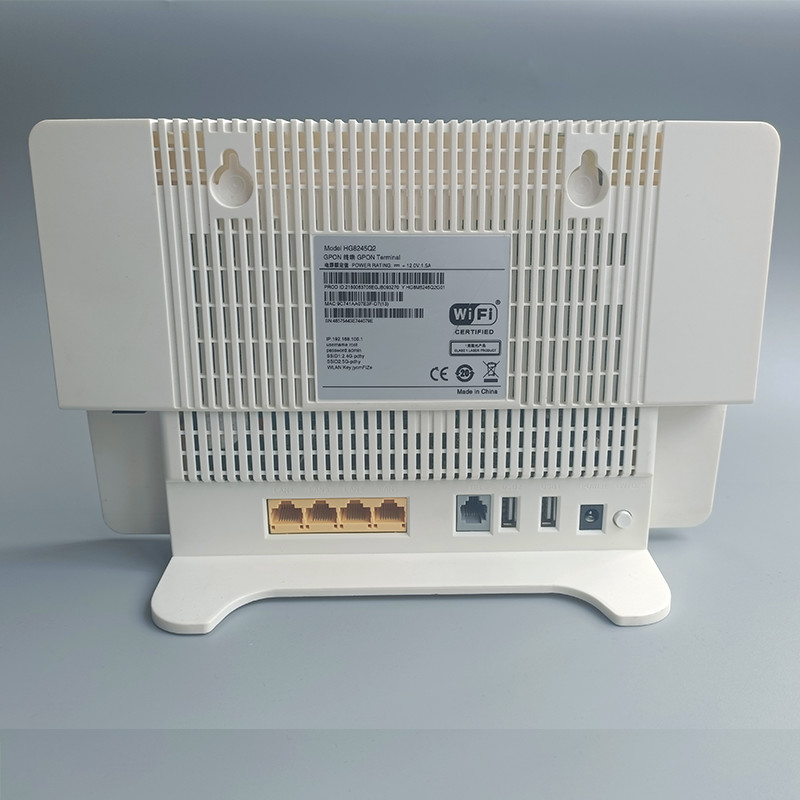

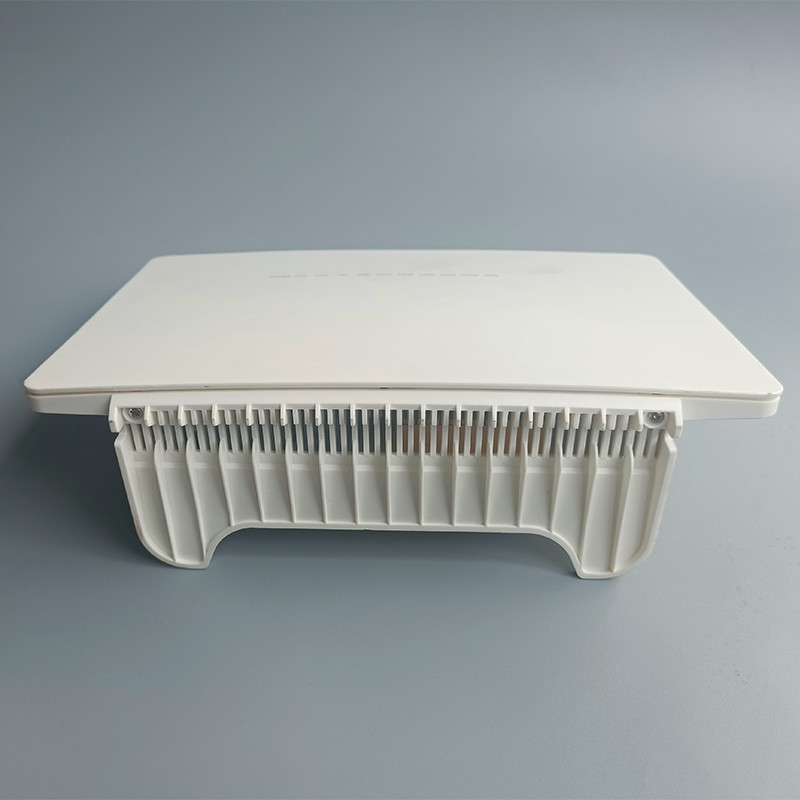

Huawei HG8245Q2 is an ONT terminal designed for GPON networks. It is equipped with 4 gigabit Ethernet ports, 2 USB ports and 1 RJ11 (POTS) phone port. The device enables wireless network transmission thanks to IEEE 802.11ac standard and 3 x 3 MIMO technology. It works simultaneously at two frequencies, 450 Mbit/s at 2.4 GHz and 1300 Mbit/s at 5 GHz. The HG8245Q2 terminal is an ideal solution for home (HGU - Home Gateway Unit) for FTTH scenarios. To easily create a intelligent home network, the gateway supports Layer 3 functionality. It provides users with Triple-play service (Internet, VoIP telephony, IPTV). The offered product is equipped with a GPON port of SC/UPC class B+. The device uses a tower type standing casing. The set includes a 12 V 2 A power supply.

Key features of ONT HG8245Q2

• 4 Gigabit Ethernet ports
• 1 RJ11 telephone port (POTS)
• 2 USB ports
• Dual band Wi-Fi radio, 2.4 GHz and 5 GHz AC
• 3 x 3 MIMO, up to 450 Mb/s in the 2.4 GHz band and up to 1300 Mb/s in the 5 GHz band
•
