New 1ge+1fe Fiberhome An5506-02b Epon Fiber Optic Unit Ont Gpon ONU

Ask Lasest Price
Brand Name :	GPON ONU
Model Number :	AN5506-02-B
Certification :	CE ROHS Anatel
Price :	$7.3-8.6
Payment Terms :	T/T,Western Union
Supply Ability :	10000pcs/Week
Delivery Time :	7-15days

Add to Cart

Product Details
Company Profile

New 1ge+1fe Fiberhome An5506-02b Epon Fiber Optic Unit Ont Gpon ONU

Fiberhome ONU Cheap Price Ont An5506-02-B Mini 1Ge+1FE Gpon Onu

Product Description

Model Number: AN5506-02-B	Type: Gpon/ Epon, ONT ONU
Place of Origin: Guangdong, China	Brand Name: FiberHome
Use: Terminal	Warranty Time: 1 year
Name: FiberHome AN5506-02-B	Condition: Original and Brand New

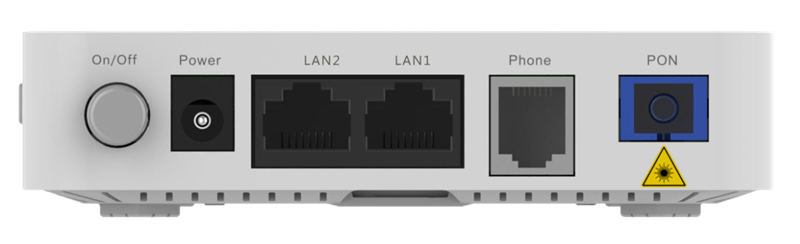

Antenna: External antenna	Ports: AN5506-02-B GPON,1GE+1FE+1TEL
Optical connecto: SC/UPC, SC/APC	Color: White
Gross Weight: About 400g	MOQ: 50 SET
Single-Mode Fiber: SMF	Application: FTTH FTTB FTTX Network

Product Introduction

GPON ONTs series equipments are manufactured and developed by FiberHome for home and SOHO users used in FTTH solution.
They are properly managed with features such as high-bandwidth, high-reliability, low power consumption and satisfy the user's triple-play requirements. AN5506-02-B is a FiberHome ONT without Wi-Fi.

Product Details

FiberHome GPON ONTs provide these key features:

- Suitable for home broadband, e-governmerit and enterprise access with integrated access demands of broadband/voice/data/video etc.

- Providing complete series of FTTH solutions for pure data, double play and triple play services, both indoor and outdoor types can be applied to meet the different

application environment.

- Smart connection by multiple kinds of UN Is: GE/FE, POTS, Wi-Fi, CATV.

- User-friendly GUI with plug-in and play capability instead of field configuration High efficiency management and maintenance with port-based mode configuration as

well as port-based status query.

- Telecom-level reliability in hardware/software and other system design to fully guarantee the normal operation of equipment.

FAQ

1: All indicator LEDs are extinguished after power-on.

1. Check whether the power cable is correctly connected;

2. Check whether the power supply and the power adapter are normal;

3. Check whether the power switch on the device's rear panel is in the ON position.

FAQ2: The device fails to work.

1. If the device works abnormally, check whether the power is connected normally or the voltage

is not within specifications;

2. If the equipment is overheated, check the ventilation. Make sure the equipment is not exposed

to direct sunshine or is near the heat source.

FAQ3: The LOS indicator LED blinks.

1. Check whether the optical fiber is damaged;

2. Check whether the optical fiber is connected normally to the appropriate interface;

3. Check whether the received optical power of the ONU is below specifications with an optical power meter;

4. Check whether the ONU optical module is aged or damaged;

5. Check whether the device at the central office end is operating normally.

FAQ4: The LAN indicator LED is extinguished.

1. Check if the network cable is damaged or incorrectly connected;

2. Check if the wiring color-coding scheme of the network cable is incorrect. If so, replace

the original network cable with a standard CAT-5 twisted-pair network cable;

3. Check if the network cable crosses the allowed range.

FAQ5: The ONU cannot be visited via WIFI.

1. Check whether the WIFI function for the ONU is enabled, and whether the SSID is set to

"Hidden" so that the WIFI signal cannot be detected.

2. Check whether the network card driver is normally installed on the computer and whether the

WLAN function for the wireless terminals like computers and mobile phones is enabled.

3. Adjust the location of the ONU, so as to reduce obstacles such as walls on the path of the signal.

The distance between the ONU and the wireless terminals should be within the required range.

FAQ6: Logging into the Web page failed.

1. Check the network card configuration and the browser version of the user's computer;

2. Check whether the IP address of the user's computer is correctly configured.
