| Ask Lasest Price | |

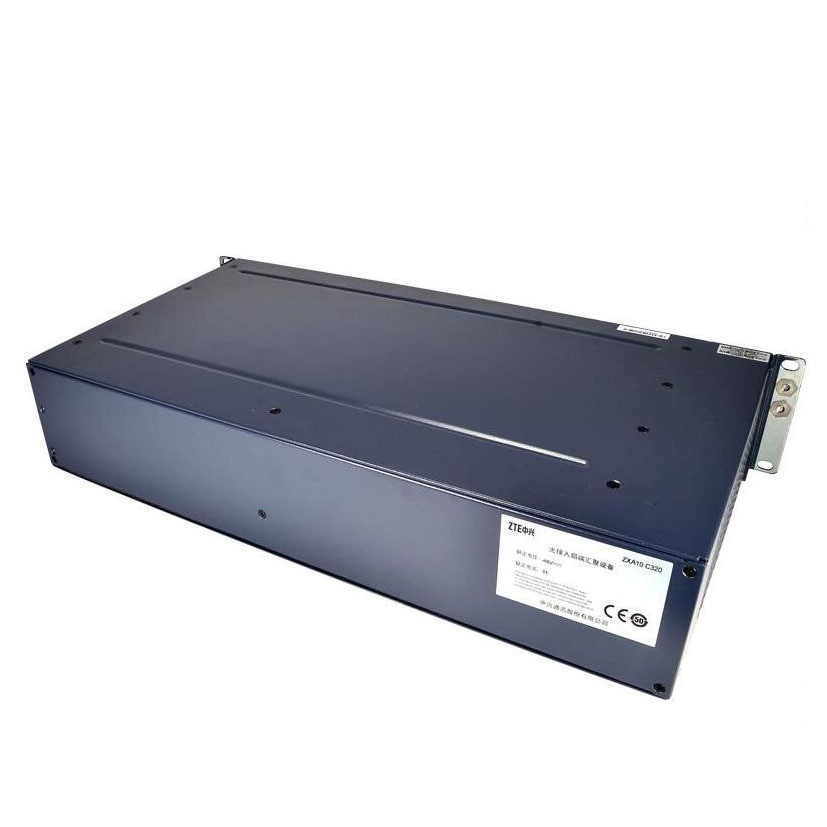

| Brand Name : | ZTE OLT |
| Model Number : | C320 |
| Certification : | CE ROHS Anatel |
| Price : | Negociatable |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 15000pcs/Week |
| Delivery Time : | 15 WORK DAYS |
The C320 platform is suitable for long-distance applications where OLT
should be close to users and where it cannot be used centrally.
The S+C VLAN, QoS, multicast, E-OAM, synchronization and security
functions make C320 a stable and reliable network.
| Platform capabilities | 420 Gb/s |
| Switching speed | 84 Gb/s |
| Number of places for service cards | 2 (GPON / P2P / XG-PON1) |
| Number of places for combined control cards | 2 |
| Number of power card slots | 1 |
| Number of Uplink card slots | 1 (10GE / GE / FE / E1 / T1) |
| Maximum number of GPON subscribers | 4 096 |
| Management interfaces | CLI, SSH, SNMP, telnet |
| Dimensions | 2U (86.1 x 482.6 x 270 mm) |
| Power supply | 48 V (DC), 230 V (AC) |
| Working conditions | Temperature: -25°C to 55°C Humidity: 5%-95% |
| ITU GPON features G.984.x | |
| Division coefficient | Up to 1:128 |
| Reach | 20-60 km |
| Maximum damping | SFP B+ 28 dB SFP C+ 32 dB |
| Dynamic capacity allocation | NSR-DBA SR-DBA |
| Support | FEC AES128 SCB OLS |
| Features L2/L3 | |
| Multicast | IGMP Snooping / Proxy / SPR and MLD Snooping / Proxy 256 multicast VLAN, CAC, PRV, CDR |
| QoS | 8 queues per port SP DWRR DSPC marking CIR PIR EIR |
| Safeguards | L2-L4 ACL IP and MAC Source Guard DOS protection Protection against false MAC/IP Anfi-flooding DHCP 82 |
| Other parameters | VLAN, SVLAN, QinQ, VLAN stacks, STP/RSTP/MSTP, DHCP server, DHCP relay, DHCP proxy, IPv4/IPv6 dual stack |
|
|
