| Brand Name : | huawei |
| Model Number : | HG8310M |
| Supply Ability : | 10000pcs/Week |
| Price : | Negociatable |
| Certification : | CE ROHS Anatel |
| Payment Terms : | T/T,Western Union |
| Delivery Time : | 7-15days |

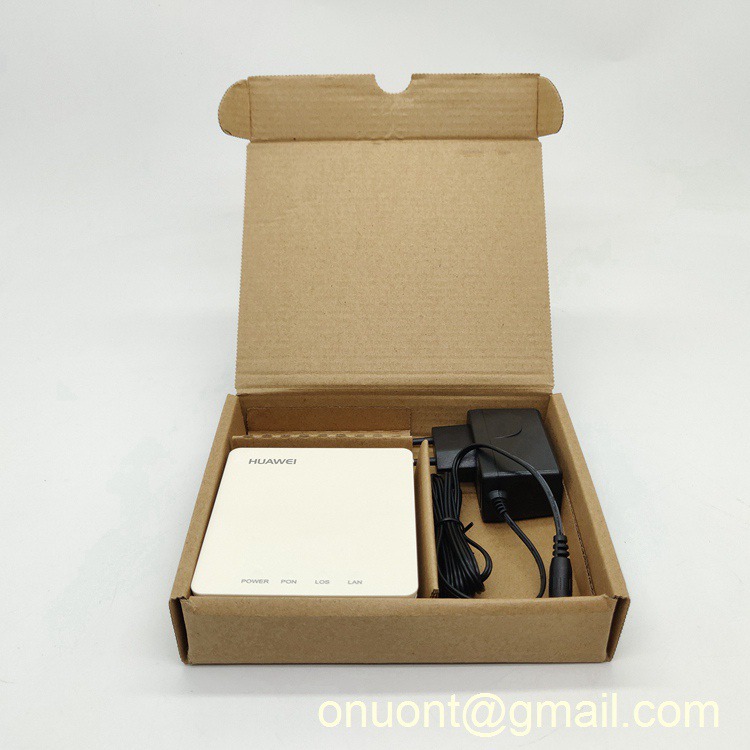

HUAWEI HG8310M GPON ONU ONT 1GE APC UPC FTTH Modem Opitcal Network terminal
HG8310M is An integral part of Huawei’s Fiber To The Home (FTTH) solution, EchoLife EG8010H is an indoor Optical Network Terminal (ONT) that uses Gigabit Passive Optical Network (GPON) technology to provide ultra-broadband access for home and Small Office/Home Office (SOHO) users. The EG8010H has one Gigabit Ethernet (GE) port and features high-performance service forwarding capabilities, ensuring excellent Internet and High Definition (HD) video service experience.
| Parameters | EchoLife HG8310M |
| Dimensions (H x W x D) | 83 x 69 x 28 mm |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 5% RH to 95% RH (non-condensing) |
| Power Adapter Input | 100 V to 240 V AC, 50 Hz/60 Hz |
| System Power Supply | 11 V to 14 V DC, 0.5 A |
| Network-Side Ports | 1 x GPON |
| User-Side Ports | 1 x GE |
| Indicators | Power/PON/LOS/LAN |
Plug-and-Play
Configurations are automatically delivered by the Network
Management System (NMS), eliminating the need for on-site
commissioning.
Comprehensive Triple Play Service
Abundant ports available to implement multiple access services,
including home network attached storage, Internet access, and
video.
Energy Efficient
System on Chip (SoC) integrate PON, gateway, and LAN Switch (LSW) modules, realizing up to 25% power savings.
|
|
