| Ask Lasest Price | |
| Supply Ability : | 10000pcs/Week |
| Payment Terms : | T/T,Western Union |
| Certification : | CE ROHS Anatel |
| Price : | Negociatable |
| Delivery Time : | 7-15days |
1. Performance

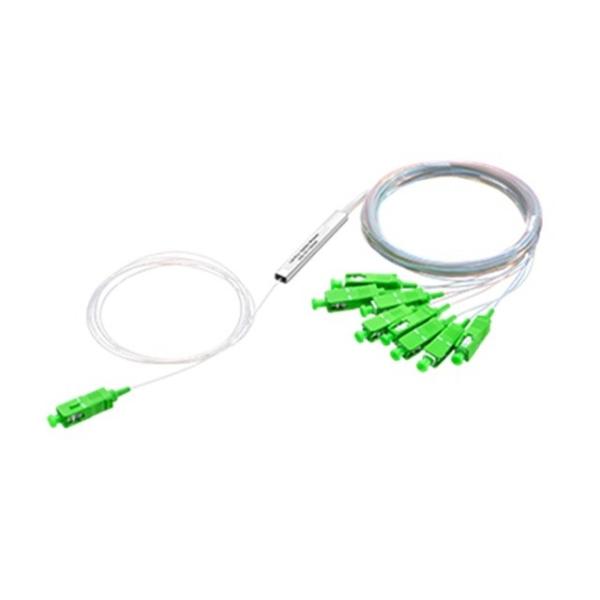

Table1. 1XN PLC splitter(with connector)
Parameters | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 |
Operating Wavelength (nm) | 1260~1650 | |||||
Insertion Loss (dB) | ≤4.3 | ≤7.5 | ≤11.0 | ≤14.0 | ≤17.0 | ≤21.0 |
Loss Uniformity (dB) | ≤0.6 | ≤0.6 | ≤0.8 | ≤1.2 | ≤1.5 | ≤1.8 |
PDL (dB) | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 |
Return loss(dB) | UPC≥50dB;APC≥55dB | |||||
Directivity (dB) | ≥55 | |||||
Pigtail Length (m) | 1m or customer specified | |||||
Fiber Type | G657A or customer specified | |||||
Operation temperature(ºC) | -40~85 | |||||
Note: All measurements were done at room temperature. Above parameters all testing at 1310nm,1550nm wavelength, if it test at 1260~1300nm,1600~1650nm,then insertion loss would be add 0.3dB based on above parameters. | ||||||
Table2. 2XN PLC splitter(with connector)
Parameters | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 | 2x64 |
Operating Wavelength (nm) | 1260~1650 | |||||
Insertion Loss (dB) | ≤4.5 | ≤8.0 | ≤11.7 | ≤14.7 | ≤17.9 | ≤21.2 |
Loss Uniformity (dB) | ≤0.8 | ≤1.0 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.5 |
PDL (dB) | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 |
Return loss(dB) | UPC≥50dB;APC≥55dB | |||||
Directivity (dB) | ≥55 | |||||
Pigtail Length (m) | 1m or customer specified | |||||
Fiber Type | G657A or customer specified | |||||
Operation temperature(ºC) | -40~85 | |||||
Note: All measurements were done at room temperature. Above parameters all testing at 1310nm,1550nm wavelength, if it test at 1260~1300nm,1600~1650nm,then insertion loss would be add 0.3dB based on above parameters. | ||||||
2. Features:
Excellent Uniformity
High reliability, stability
The quality is more credible and stable than fusion coupler
splitter
With low insertion loss, Low Polarization Dependent Loss, better
return loss and the directivity,
Broadband operating, wavelength :1260nm ~1650nm wavelength range to
achieve the planned distribution of optical power
3. Specifications:
1x2, 1x4, 1x8, 1x16, 1x32, 1x64 splits
2x2, 2x4, 2x8, 2x16, 2x32, 2x64 splits
Type: Bare-fiber type,micro type,ABS box type,Cassette type
Adapter type of splitter: SC/UPC, SC/APC
4. Applications:
Access Network,EPON,GPON or WDM-PON
CATV system
Optical communication systems
Testing instruments
FTTH, FTTB
|
|
