OEM HK719 XPON GPON EPON 1GE 3FE 1TEL 2.4g 3dbi

Ask Lasest Price
Brand Name :	OEM
Model Number :	HK719
Certification :	CE ROHS Anatel
Price :	Negociatable
Payment Terms :	T/T,Western Union
Supply Ability :	10000pcs/Week
Delivery Time :	7-15days

Add to Cart

Product Details
Company Profile

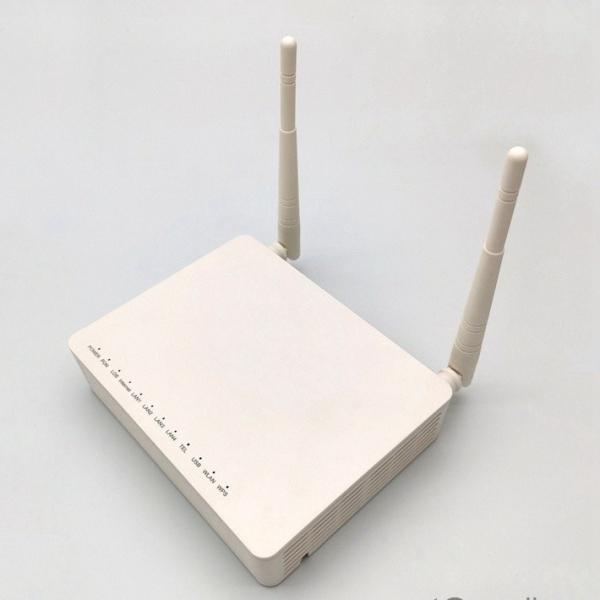

OEM HK719 XPON GPON EPON 1GE 3FE 1TEL 2.4g 3dbi

OEM HK719 GPON ONU ONT FTTH 1GE 3FE 1TEL 2.4g 3dbi compatible with HUAWEI ZTE Fiberhome OL

1. Overview

HK719 GPON ONU ONT is designed as HGU (Home Gateway Unit) in different FTTH solutions. Carrier-grade FTTH applications provide different services.
HK719 GPON ONU ONT is based on the mature, stable and cost-effective XPON technology.
HK719 GPON ONU ONT adopts high reliability, easy management, flexible configuration and good quality of service guarantee, meeting the technical performance of China Telecom CTC3.0 EPON standard and ITU-TG.984.X GPON standard

2. Functional Feature

HK719 GPON ONU ONT Support GPON mode and switch mode automatically
HK719 GPON ONU ONT Support Route mode for PPPoE/DHCP/Static IP and Bridge mode
HK719 GPON ONU ONT Support IPv4 and IPv6 dual mode
HK719 GPON ONU ONT Support 2.4G WIFI and Multiple SSID
HK719 GPON ONU ONT Support LAN IP and DHCP Server configuration
HK719 GPON ONU ONT Support Port Mapping and Loop-Detect
HK719 GPON ONU ONT Support Firewall function and ACL function
HK719 GPON ONU ONT Support IGMP Snooping/Proxy multicast feature
HK719 GPON ONU ONT Support TR069 remote configuration and maintenance
HK719 GPON ONU ONT Specialized design for system breakdown prevention to maintain stable system

3. Hardware Specification

Technical item	Details
PON Interface	1 GPON BOB (Bosa on Board)
	Receiving sensitivity: ≤-28dBm
	Transmitting optical power: +1~+4dBm
	Transmission distance: 20KM
Wavelength	TX: 1310nm, RX: 1490nm
Optical Interface	SC/UPC Connector
Design Scheme	RTL9603C+RTL8192FR BOB(RTL8290B)
Chip Spec	CPU 950MHz,DDR2 128MB
Flash	SPI Nor Flash 16MB
LAN Interface	1 x 10/100/1000Mbps(GE) and 3 x 10/100Mbps(FE) auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
Wireless	Compliant with IEEE802.11b/g/n,
	Operating frequency: 2.400-2.4835GHz
	support MIMO, rate up to 300Mbps,
	2T2R,2 external antenna 5dBi,
	Support: Multiple SSID
	Channel: Auto
	Modulation type: DSSS, CCK and OFDM
	Encoding scheme: BPSK, QPSK, 16QAM and 64QAM
LED	9 LED, For Status of WIFI,WPS,PWR,LOS,PON,LAN1~LAN4
Push-Button	3,For Function of Reset, WLAN, WPS
Operating Condition	Temperature: 0℃~+50℃
Operating Condition	Humidity: 10%～90%(non-condensing)
Storing Condition	Temperature: -30℃~+60℃
Storing Condition	Humidity: 10%~90%(non-condensing)
Power Supply	DC 12V/1A
Power Consumption	≤6W
Dimension	155mm×92mm×34mm(L×W×H)
Net Weight	0.24Kg

4. Panel lights Introduction

Pilot Lamp	Status	Description
WIFI	On	The WIFI interface is up.
	Blink	The WIFI interface is sending or/and receiving data (ACT).
	Off	The WIFI interface is down.
WPS	Blink	The WIFI interface is securely establishing a connection.
WPS	Off	The WIFI interface does not establish a secure connection.
PWR	On	The device is powered up.
PWR	Off	The device is powered down.
LOS	Blink	The device doses not receive optical signals or with low signals.
LOS	Off	The device has received optical signal.
PON	On	The device has registered to the PON system.
	Blink	The device is registering the PON system.
	Off	The device registration is incorrect.
LAN1~LAN4	On	Port (LANx) is connected properly (LINK).
	Blink	Port (LANx) is sending or/and receiving data (ACT).
	Off	Port (LANx) connection exception or not connected.

5. Application

Typical Solution:FTTH(Fiber To The Home)
Typical Business:INTERNET,IPTV,WIFI etc

FAQ

1. Can we get a lower price? Any Discount?

Yes, price is not a problem, everything could be negotiated based on the quantity.

2. We are new in this PON fields, can you help me and recommend me some items?

Yes, of course. It is our pleasure to help you with it.

You only need to offer us more details about your application.

3. OEM/ODM Service is available?

Yes, We have strong ability to offer customers ODM&OEM products of highest quality.

4. What are the advantages of your products?

A. Good quality and competitive prices.

B. Strict quality control during production process.

C. Professional operations in processes of production, sales, assembling, packaging and shipping.

D. Good after-sale service. Professional online technical support can be provided. Moreover, if there is any problem of the goods, we will help to solve the problem or provide replacement of the goods.
