12W Router ZTE ZXHN F688 VoIP Internet IPTV CATV GPON ONT ONU 4GE 2POST

Ask Lasest Price
Brand Name :	ZTE
Certification :	CE ROHS Anatel
Price :	Negociatable
Delivery Time :	7-15days
Payment Terms :	T/T,Western Union
Supply Ability :	10000pcs/Week

Add to Cart

Product Details
Company Profile

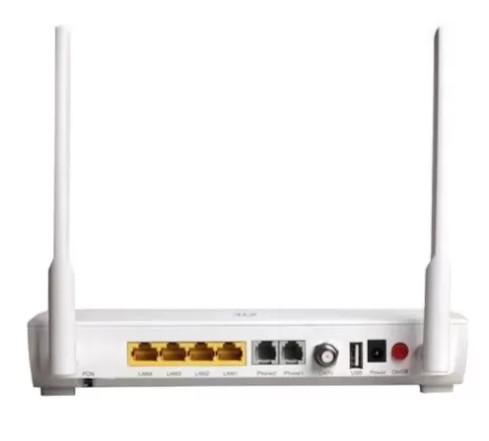

12W Router ZTE ZXHN F688 VoIP Internet IPTV CATV GPON ONT ONU 4GE 2POST

ZTE Optical Cat ZXHN F668 GPON ONT ONU 4GE + 2POST + CATV with WIFI

ZTE F668 (4GE+2POTS+CATV+2USB) GPON ONT Features:

ZXHN F668 is a GPON Optical Network Terminal designed for FTTH scenarios. It provides subscribers rich, colorful, individualized, convenient and comfortable triple-play services including voice, video (IPTC/CATV) and hgh speed internet access.

Main Function
• Supported service: VoIP, Internet, IPTV, CATV
• GPON: 8 T-CONTs, 32 GEM Ports
• VLAN: 802.1Q, 802.1P, 802.1ad
• MAC address table: 1k
• L3 function: DHCP server/client, DNS client, NAT
• IPv6: Dual Stack, DS-Lite
• VoIP: SIP/H.248, G.711/G.722/G.729, T.30/T.38
• Wi-Fi: 4 SSIDs, 2x2 MIMO, WPS
• Wi-Fi authentication: Shared key, 128-bit WEP, WPA-PSK, WPA2-PSK, WPA-PSK + WPA2-PSK
• Multicast: IGMP v1/v2 Snooping/Proxy, MLD v1 Snooping
• Multicast group per user port: 256
• QoS: service flow classification based on physical port, MAC address, VLAN ID, VLAN priority level, IP addressl SP/WRR/SP+WRR
• Management: local web management, OMCI, TR069

GPON Interface
• Optical port: 1 x GPON interface (SC/APC)
• Transmission distance: 0 - 20 km
• Transmit rate: 2.488 Gbps downstream ; 1.244 Gbps upstream

User Network Interface
• 4 x 10/100/1000Base-T: Half/full duplex ; Auto MDI/MDIX ; Auto negotiatioin
• 2 x POTS interfaces
• 1 x Wi-Fi interface: IEEE 802.11b/g/n @ 2.4 GHz
• 1 x RF coaxial connector for CATV
• 1 x USB 2.0 host interface

Optical Module
• Wavelength:
- Receiving: 1480 - 1500 nm
- Transmitting: 1290 - 1330 nm
- Third party wavelength: 1550 - 1560 nm
• Receiving Sensitivity: -28 dBm
• Transmitting Optical Power: 0.5 - 5 dBm

Specication

Technical items	Descriptions
Fiber port	1 GPON interface, 4GE+1POTS+1CATV+1USB+2.4G WIFI,SC single-mode
Wavelength	Tx 1310nm, Rx 1490nm
Fiber interface	SC/UPC OR SC/APC
RX sensitivity	<-27dBm (1490nm)
WLAN	IEEE802.11b/g/n,22 MIMO, 2.4G,2External antenna 3dbm
LAN	1*10/100/1000Mbps adaptive Ethernet ports, full/half duplex, RJ45 interface
Throughput	Downstream 950Mbps,Upstream 930Mbps
ONT Detection and Isolation of Active/Passive Hooligans	YES
L2 forwarding capability	200 Mbit/s downstream (with any length packets) 200 Mbit/s upstream (with any length packets)
IPv4 L3 forwarding capability	2Gbit/s with any length packets in downstream direction 1Gbit/s with any length packets in upstream direction
CATV Interface	RF, WDM, optical power : +2~-15dBm Optical reflection loss: ≥45dB Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level: 78dBuV AGC range: -13~+1dBm MER: ≥32dB@-15dBm
Configuration method	NMS, Web, or TR069
Voice protocol	SIP, H.248
DC power	Adapter input: 100-240 V AC, 50 - 60 Hz ; Adapter output: 11 – 14 V DC, 1.5A
Button	Reset, power
Power	≤12W
Operation	Working temperature: -0-+40℃ working humidity:5-95%(non-condensation)
Dimension	370175115mm(lengthwidthheight)
Net weight	≤0.5Kg

Frequently Asked Questions :

Q: Are you a manufacturer or trading company?
A: We are manufacturer of ONT and FTTH equipment in china,meanwhile we are primary wholesaler of brand new ONU OLT in china, that’s why We can offer good price and solution as well as technical support for our customer

Q: Where is your company located?
A: Our company is located in shenzhen, China. Our office and
warehouse is Near Guangzhou and hongkong,we can provide better and
economic delivery solution and payment solution for you

Q: How can I get the sample? What's the lead time?
A: By DHL/UPS/FedEx express. Samples lead time is 3-5 days.

Q: How does your company control product quality?
A: All Brand name ONT and OLT we sold is original brand New ,We
guarantee the quality for 1-3years For FTTH accessories ,our
factory have ISO9001 Certificated, independent quality control team
. The third party certificated and factory audit accepted.Third
party quality control accepted.

Q: Do you provide ODM/OEM service?
A: OEM/ODM is welcome, For printing your own logo, MOQ only
100pcs-1000pcs, we have our own designer and engineer, We have
happy to do ODM service and technical support for you

Q: How to place the order?
1 Contact us and discuss the detail with our saler
2 We will issue the Proforma invoice for your to final confirm the
order and delivery detail
3 Pay Deposit or full payment by (T/T Western-Union Trade-Assurance
)
4 We will ship out your cargo in time per the PI / Contract
