| Brand Name : | HUAWEI |
| Model Number : | ETP48100-B1 |
| Certification : | CE ROHS Anatel |
| Price : | Negociatable |
| Supply Ability : | 10000pcs/Week |
| Delivery Time : | 7-15days |
| Payment Terms : | T/T,Western Union |

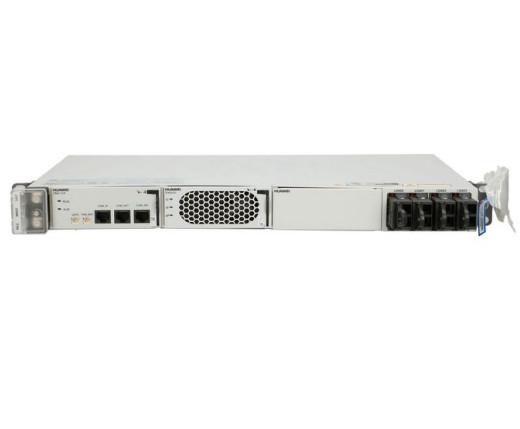

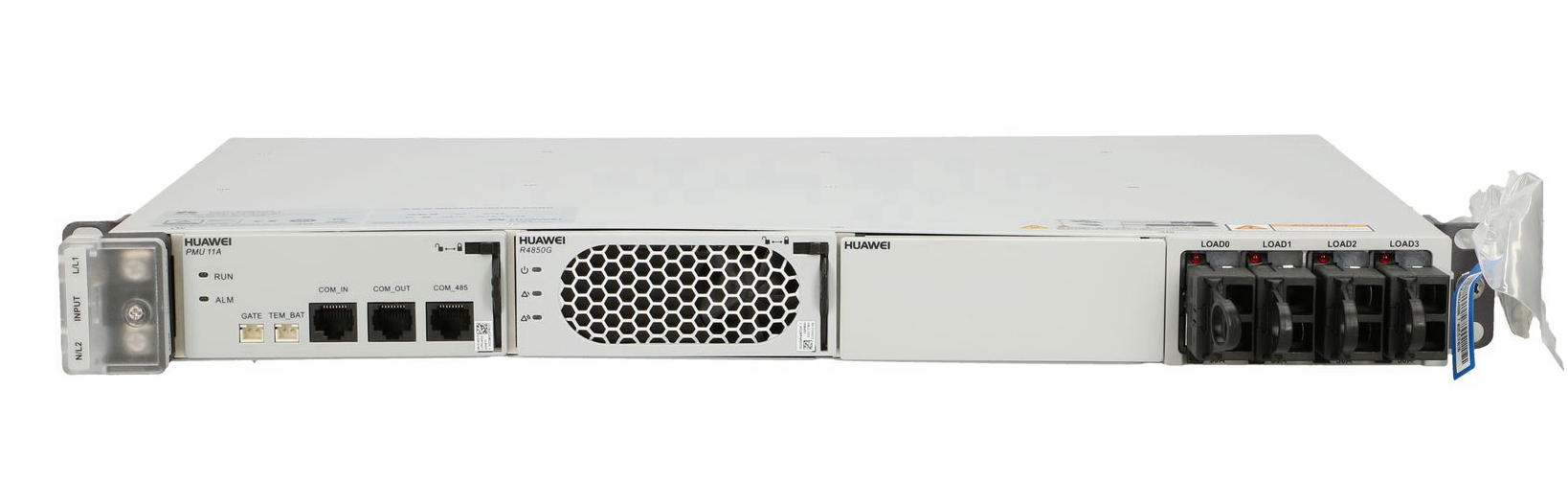

HUAWEI ETP48100 Fiber Optical Network Terminal 50A 100A Power Supply
HUAWEI OLT ETP48100 ETP48100B1 ETP48100-B1 50A 100A Power Supply OLT Power Converter
Huawei ETP48100-B1 is a modular AC/DC converter with as many as 4 power inputs, each with MAX 25 A. It is capable of converting 220 V / 110 V AC power to -48 V DC power.
The device has two R850G2, making its total output power can be 100 A. Huawei ETP48100-B1-50A has many protections, so the rectifiers show very high efficiency.
Huawei ETP48100-B1-50A 1U, 48V, 1x50a modular AC/DC converter.
Modern functionality
The Huawei ETP48100-B1-50A has a wide input voltage range of 100V - 240V. In addition, it also features a wide operating temperature range from -40°C to 75°C, making it suitable for use in almost any conditions. Easy installation and maintenance is conditioned by the possibility of hot exchange of rectifier blocks. The design of the device is very versatile and has a wide range of applications, plus it is very well thought out, which guarantees space saving. The device is also characterized by a remarkable efficiency of the rectifier (>96%), which saves electricity in an ecological way. In addition, the Huawei ETP48100-B1-50A has ambient temperature monitoringsupport
The ETP48100-B1 is designed to convert 220V public grid to -48V constant voltage. The ability to use two internal power supplies provides up to 100A output current of -48V. all functional units have a standard 1U size and can be installed in a 19" rack or cabinet.
ETP48100 Datahseet
| Item | ETP48100-B1-50A |
| Input voltage | 220 V AC single-phase voltage range: 176 V AC to 290 V AC |
| Input voltage frequency | 45 Hz to 65 Hz |
| Output voltage | Voltage range: 48V-58V DC |
| Output current | 30 A for the 220 V AC single-phase input power |
| Maximum output power (W) | 3000 W (176–290 V AC); 1250 W (85–175 V AC decreased linearly) |
| Surge protection capability | 2 kV in differential mode / 4 kV in common mode |
|
|
