FTTH SmartAX MA5608T GPON EPON OLT HUAWEI Optical Line TerminalHuawei SmartAX MA5608T GPON OLT, 19 inch, with 2U height 2 service
slots, support EPON, GPON, 10G PON, P2P, xDSL and POTS; H801MABR
subrack
| Product Name | OLT Service Subrack |
| Brand | Huawei |
| Mode | MA5608T |
| Packing Size | 59x38.5x18 |
| Gross Weight | 12 |
| Service Board Slots | 2 |
| Interface Board | MCUD+GPFD |
Pls Confirm with our saler the specification you need| MA5608T OLT 1xMCUD + 1xMPWC |
| MA5608T OLT 1xMCUD + 1xMPWD |
| MA5608T OLT 1xMCUD1 + 1xMPWC |
| MA5608T OLT 1xMCUD1 + 1xMPWD |
| MA5608T OLT 2xMCUD + 1xMPWC |
| MA5608T OLT 2xMCUD,1xMPWD |
| MA5608T OLT 2xMCUD1 + 1xMPWC |
| MA5608T OLT 2xMCUD1 + 1xMPWD |
The MA5608T, if serving as a mini OLT, supports GPON, 10G GPON, and
P2P access modes. It can be installed at a residential district or
a street side, which reduces the usage of ODN backbone optical
cables, lowers the ODN deployment cost and difficulty, and
minimizes the CO equipment room space.
The MA5608T, if serving as a mini-DSLAM, supports ADSL2+, VDSL2,
SHDSL, and POTS access modes and provides Internet access, voice,
and video services.

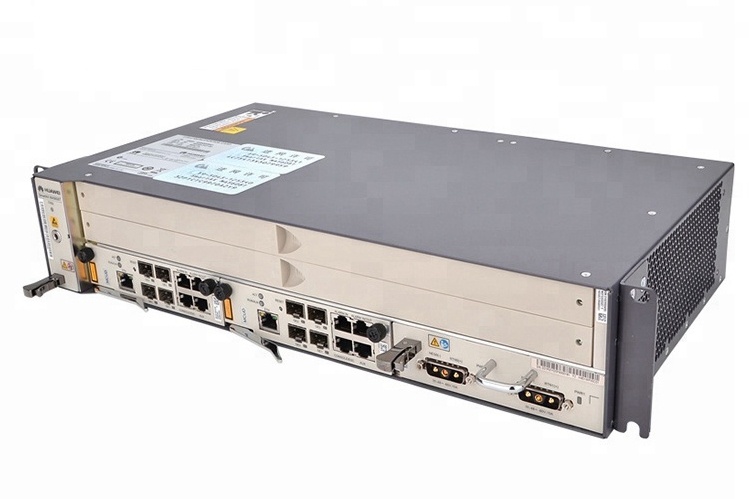

Figure 4 shows the appearance of the MA5608T.
Figure 4 Appearance of the MA5608T configured with the xPON boards| Item | MA5608T |
| Board configuration | 2 slots for control boards |
| 2 slots for service boards |
| 1 slots for the power interface board. |
| Switching capacity of the backplane bus | 720 Gbit/s |
| Supported control board and its switching capacity | MCUD/MCUD1: 128 Gbit/s in active/standby mode or 256 Gbit/s in
load-sharing mode |
| System Layer 2 packet forwarding rate | MCUD/MCUD1: 128 Gbit/s in active/standby mode or 256 Gbit/s in
load-sharing mode |
| Switching/Forwarding delay | Short forwarding delay: The 100 Mbit/s Ethernet port sends the
64-byte Ethernet packets at a delay shorter than 20 μs. |
| BER in full load | BER of a port when the port transmits data in full load < 10 e-7 |
| System reliability specifications | System: redundant configuration. |
| System availability for the typical configuration: > 99.999% |
| Mean time between failures (MTBF): about 45 years. |
| NOTE: |
| Due to different network environments and different boards used by
devices, the above-mentioned MTBF (45 years) of the MA5608T is only
for reference. The average repair time for field replaceable units
(FRUs) is about 2 hours. The preceding values are only for
reference. For details, contact the related Huawei engineers. |
| Maximum number of ADSL2+ ports in a subrack | 128 |
| Maximum number of VDSL2 ports in a subrack | 128 |
| Maximum number of EFM SHDSL ports in a subrack | 64 |
| Maximum number of TDM SHDSL ports in a subrack | 32 |
| Maximum number of POTS ports in a subrack | 128 |
| Maximum number of ISDN BRA ports in a subrack | 64 |
| Maximum number of ISDN PRA ports in a subrack | 64 |
| Maximum number of GPON ports in a subrack | 32 |
| Maximum number of 10G GPON ports in a subrack | 8 |
| Maximum number of P2P FE ports in a subrack | 96 |
| Maximum number of P2P GE ports in a subrack | 96 |
| Operating environment | Operating temperature: -40°C to +65°C |
| Operating humidity: 5% RH to 95% RH |
| Atmospheric pressure: 61 kPa to106 kPa |
| Altitude: ≤ 4000 m |
