| Ask Lasest Price | |
| Supply Ability : | 10000pcs/Week |
| Payment Terms : | T/T,Western Union |
| Certification : | CE ROHS Anatel |
| Price : | Negociatable |
| Delivery Time : | 7-15days |

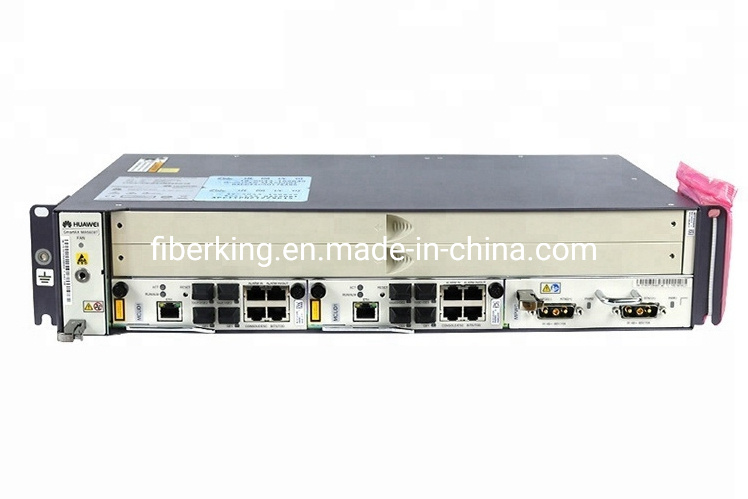

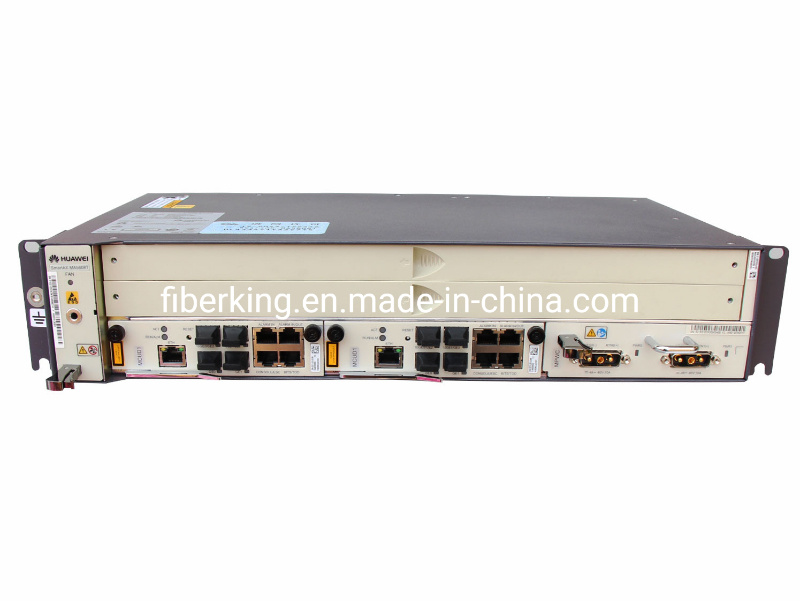

Huawei MA5608T GPON OLT H801MABR subrack
Comes with 2 PCS power cable, 1 PCS earth cable, 2 PCS mount ear, accessory package
Huawei MA5608T compatible 2U height GPON OLT system
Chassis supports 2 Service Slots
One power slot, can supply with 2 ports DC redundancy, or AC and DC redundancy (battery)
Two slot redundancy for main control board
Support GPON, EPON and P2P (Optical Access);xDSL and POTS(Copper Access)
Support GPON & EPON simultaneously
Support 8-GPON port interface card GPBD, 16-GPON port interface card GPFD
Support GPON split ration 1:128
Support GE uplink (embedded in MCUD main control board) or 10GE uplink (embedded in MCUD1 main control board)
MA5608T Software Version available at V800R012 or V800R013
Huawei MA5608T is a aggregation Optical Line Terminal (OLT), it supports up to 2 service slots and can support maximum 4096 subscribers (GPON). MA5608T has MCUD/MCUD1 Main Control Board available for selection, and one power slot redundancy for AC or DC power input.Total of 8 bundle line.
Huawei SmartAX MA5608T GPON OLT, 19 inch, with 2U height 2 service slots, support EPON, GPON, 10G PON, P2P, xDSL and POTS; H801MABR subrack
| Product Name | OLT Service Subrack |
| Brand | Huawei |
| Mode | MA5608T |
| Packing Size | 59x38.5x18 |
| Gross Weight | 12 |
| Service Board Slots | 2 |
| Interface Board | MCUD+GPFD |
| MA5608T OLT 1xMCUD + 1xMPWC |
| MA5608T OLT 1xMCUD + 1xMPWD |
| MA5608T OLT 1xMCUD1 + 1xMPWC |
| MA5608T OLT 1xMCUD1 + 1xMPWD |
| MA5608T OLT 2xMCUD + 1xMPWC |
| MA5608T OLT 2xMCUD,1xMPWD |
| MA5608T OLT 2xMCUD1 + 1xMPWC |
| MA5608T OLT 2xMCUD1 + 1xMPWD |
| Item | MA5608T |
| Board configuration | 2 slots for control boards |
| 2 slots for service boards | |
| 1 slots for the power interface board. | |
| Switching capacity of the backplane bus | 720 Gbit/s |
| Supported control board and its switching capacity | MCUD/MCUD1: 128 Gbit/s in active/standby mode or 256 Gbit/s in load-sharing mode |
| System Layer 2 packet forwarding rate | MCUD/MCUD1: 128 Gbit/s in active/standby mode or 256 Gbit/s in load-sharing mode |
| Switching/Forwarding delay | Short forwarding delay: The 100 Mbit/s Ethernet port sends the 64-byte Ethernet packets at a delay shorter than 20 μs. |
| BER in full load | BER of a port when the port transmits data in full load < 10 e-7 |
| System reliability specifications | System: redundant configuration. |
| System availability for the typical configuration: > 99.999% | |
| Mean time between failures (MTBF): about 45 years. | |
| NOTE: | |
| Due to different network environments and different boards used by devices, the above-mentioned MTBF (45 years) of the MA5608T is only for reference. The average repair time for field replaceable units (FRUs) is about 2 hours. The preceding values are only for reference. For details, contact the related Huawei engineers. | |
| Maximum number of ADSL2+ ports in a subrack | 128 |
| Maximum number of VDSL2 ports in a subrack | 128 |
| Maximum number of EFM SHDSL ports in a subrack | 64 |
| Maximum number of TDM SHDSL ports in a subrack | 32 |
| Maximum number of POTS ports in a subrack | 128 |
| Maximum number of ISDN BRA ports in a subrack | 64 |
| Maximum number of ISDN PRA ports in a subrack | 64 |
| Maximum number of GPON ports in a subrack | 32 |
| Maximum number of 10G GPON ports in a subrack | 8 |
| Maximum number of P2P FE ports in a subrack | 96 |
| Maximum number of P2P GE ports in a subrack | 96 |
| Operating environment | Operating temperature: -40°C to +65°C |
| Operating humidity: 5% RH to 95% RH | |
| Atmospheric pressure: 61 kPa to106 kPa | |
| Altitude: ≤ 4000 m |
|
|
