| Ask Lasest Price | |
| Brand Name : | HKING |
| Model Number : | HG8546M |
| Certification : | CE,ISO,RoHS |
| Price : | USD-14-15/pcs |
| Payment Terms : | T/T |
| Supply Ability : | 100000/week |
| Delivery Time : | 5-8days |

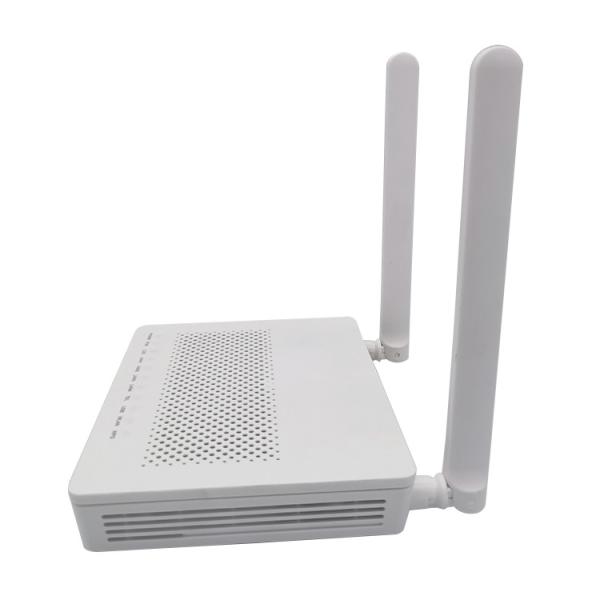

Huawei HG8546M FTTH is an Optical Terminal Unit with 1 GE+3 FE+1 POTS+1 USB+2.4G WiFi or 4 FE+1 POTS+1 USB+2.4G WiFi. This is a high-end home gateway in Huawei FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users. It can support pure data, Data +Voice, Data+ Voice+ WIFI and other service accessing type. HG8546M ONT supports standard OMCI, can provide up to 1.25Gbps uplink and 2.5Gbps downlink high-speed transfer rate. It can fully meet ISPs FTTBFTTHFTTO equipment needs The high-performance forwarding capability effectively guarantees the service experience of voice, data, and high-definition video
Brand | Huawei |
Model | HG8546M |
Power supply | 12V,1.5A |
Power consumption (full loaded) | ≤15W |
Outline dimensions (mm) (W*D*H) | 240*160*35mm |
Weight (in maximum configuration) | ≤0.5kg |
WIFI | Antenna 2×2, 5dBi external antenna |
EIRP Max 25dBm | |
VoIP | REN Max 5REN |
Connector 1x RJ11 | |
Ringing 65V RMS ringing voltage | |
USB | Max 1A for each port |
Environmental requirements | Working temperature:0ºC~50ºC |
Storage temperature:-40ºC~70ºC | |
Working humidity:5%~90% Storage temperature:5%~95% no condensing | |
Ethernet | Standard;IEEE802.3 IEEE802.3au IEEE802.3x |
Interface;1x 10/100/1000BASE-T+310/100Base-T RJ45 Auto negotiation Auto MDI/MDIX |
|
|
