EG8145X6 2.4G 5G GPON Dual Band Router 4GE 1POTS 2USB 10G GPON ONT

Ask Lasest Price
Brand Name :	huawei
Model Number :	EG8145X6
Certification :	CE rosh
Price :	30us$
Payment Terms :	T/T
Supply Ability :	10000pcs/week
Delivery Time :	15days

Add to Cart

Product Details
Company Profile

EG8145X6 2.4G 5G GPON Dual Band Router 4GE 1POTS 2USB 10G GPON ONT

FTTH Optical GPON ONU Optical EG8145X6 with 4GE 1POTS 2USB 2.4G/5G Dual Band 10G GPON ONT

Overview

Quick Details

Model Number:: EG8145X6

Type:: ONU

Place of Origin:: Guangdong, China

Brand Name:: UT-King

Use:: FTTH

Warranty Time:: 1 Year

Network:: Wireless Lan, wifi

Application:: FTTH FTTX

Product Name:: GPON ONU

Operating Temperature:: 0~40°C

Operating Humidity:: 5~95% RH (non~condensing)

Function:: 4 x GE, 1 x POTS, 1 x USB 2.0, 2.4G/5G WiFi

System Power Supply:: 11~14 V DC, 1.5 A

PON interface:: SC/UPC SC/APC

Applications Distance:: 20km

LAN Interface:: 4*10/100/1000Mbps RJ45 Ports

Software:: English Firmware

Supply Ability

Supply Ability: 10000 Piece/Pieces per Week

Packaging & Delivery

Packaging Details: 1 pcs 1 box.30 pcs 1 carton

Product Description

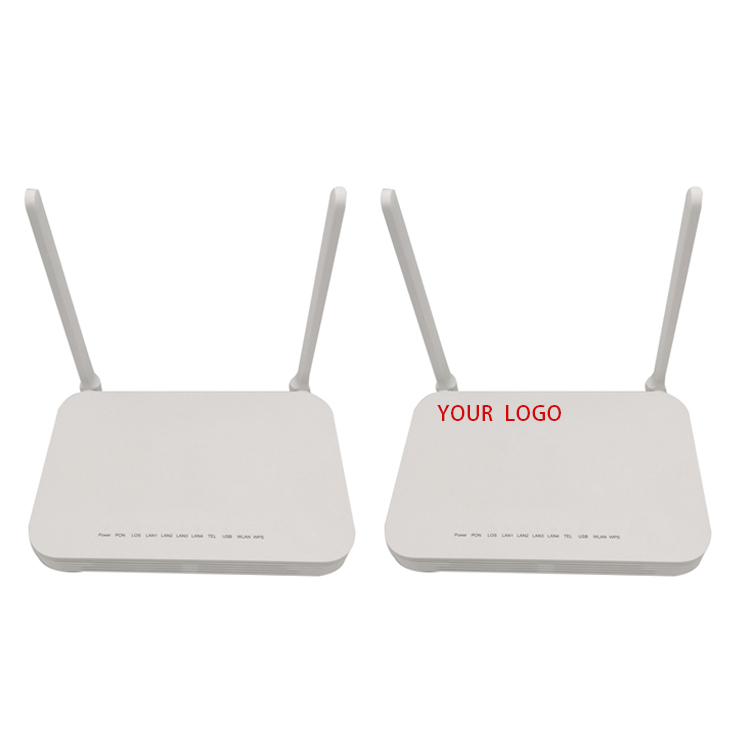

FTTH Optical GPON ONU Optical Network Terminal EG8145X6 with 4GE 1POTS 2USB 2.4G/5G Dual Band 10G GPON ONT

Huawei EG8145X6 10G FTTH is an intelligent Wi-Fi 6 routing-type
Optical Network Terminal with 4 GE ports, 1 POTS port, and 1 USB
port, and 2.4G and 5G Wi-Fi connectivity, and it adopts Gigabit
Passive Optical Network (GPON) technology to offer ultra-broadband
access, high performance, and wide coverage for users. With high
forwarding performance — ensuring an exceptional experience for
voice, data, and High Definition (HD) video services — as well as
future-oriented service support capabilities and visualized
network management, OptiXstar EG8145X6 helps enterprises construct
powerful all-optical access solutions.
Features

* Class B+
* Receiver sensitivity: -27dBm ~ -29dBm
* Overload optical power: -8 dBm
* Wavelengths: US 1310 nm, DS 1490 nm
* Wavelength blocking filter (WBF) of G.984.5
* Flexible mapping between GEM Port and TCONT
* GPON: consistent with the SN or password authentication defined
in G.984.3
* Bi-directional FEC
* SR-DBA and NSR-DBA
* Type B (single-homing&dual-homing
Specification:

Moodel	EG8145X6
Pon type	GPON
Dimensions (H x W x D)	35 x 195 x 125 mm (without external antenna and pads)
Weight	Approximately 372 g
Operating Temperature	0–40°C
Operating Humidity	5–95% RH (non-condensing)
Power Adapter Input	100–240 V AC, 50/60 Hz
System Power Supply	11–14 V DC, 1.5 A
Port	4 x GE, 1 x POTS, 1 x USB 2.0, 2.4G/5G Wi-Fi 6
Maximum Power Consumption	18 W
Antenna	External antenna
Installation Mode	Desktop
Power Saving	COC V7
POTS Port	Maximum REN: 4
	G.711A/μ, G.729a/b, and G.722 encoding/decoding
	T.30/T.38/G.711 fax mode
	DTMF
	Emergency calls (with the SIP protocol)
USB Port	USB 2.0
	FTP-based network storage
	File/Print sharing based on SAMBA
	DLNA function

Details Images
